SHORT SUNDERLAND MK-3 and MK-5 1/48th PARTS

PRICED AT £54 {plus - if required - DECAL SHEETS PRICED @ £09.00} Plus Shipping

Decal Sheets Extra - choice of 19x sheets. Click here



Click to BUY KIT

Kit Contents

White vac formed plastic sheet in 1mm - 1.25mm -1.5mm or 2mm thickness. Crystal clear cockpit canopies, turrets, etc as required. High quality cast METAL fittings such as propellers, seats, engines, exhausts,

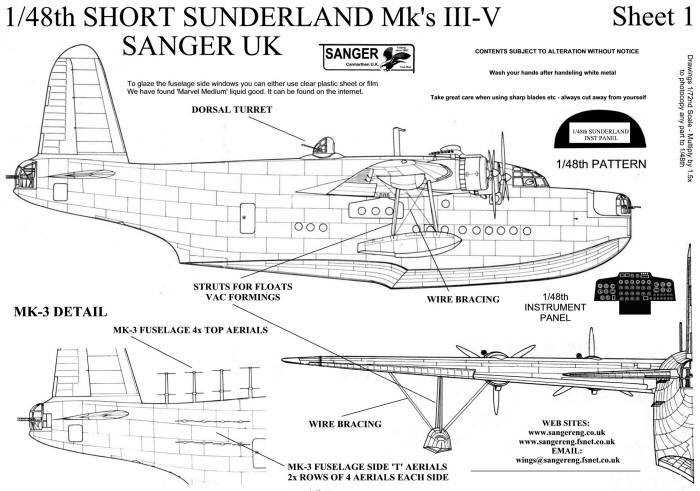

wheels, guns, aerials, etc as required. 4x Assembly drawings and instructions.



1/48th SHORT SUNDERLAND Mk-5 Photographs and build by Yves Perin (c)





Please note that the following listings show the contents of Mk- 1/2/3&5 kits and will vary according to which mark aircraft you buy.

PLASTIC PARTS LISTING

FUSELAGE Port TAILPLANE Stbd Bottom

COWL Port Inner Pegasus Bttm

DF FAIRING
FUSELAGE Stbd FIN Port Outer

COWL Stbd Inner Bttm

 LANDING TROLLEY Top
WING Port Top FIN Port Inner WING RADOM Port

LANDING TROLLEY Bttm
WING Port Bottom NACELLE Port Bttm Outer WING RADOM Stbd MID UPP' TURRET FAIRING
WING Stbd Top NACELLE Stbd Bttm Outer NOSE TURRET FAIRING UPPER GUN BLISTERS x 2
WING Stbd Bottom NACELLE Port Bttm Inner WING FLOAT Port Inner UNDERCARRIAGE LEG Port
TAILPLANE Port Top NACELLE Stbd Bttm Inner WING FLOAT Port Outer UNDERCARRIAGE LEG Stbd
TAILPLANE Port Bottom COWL Port Outer Bttm WING FLOAT Stbd Inner LANDING WHEELS x 8 Halves
TAILPLANE Stbd Top COWL Stbd Outer Pegasus Bttm WING FLOAT Stbd Outer WING FLOAT SUPPORTS x 4

CLEAR PLASTIC PARTS LISTING

CLEAR COCKPIT CANOPY NOSE TURRET 2 x Different Types MID UPPER TURRET REAR TURRET

METAL PARTS LISTING

PROPELLER BLADES x 12 EXHAUST PIPES x 4 Long LANDING TROLLEY SUPPORTS x 4 PEGASUS ENGINES x 4 (Alternatives)
PROPELLER SPINNERS x 4 EXHAUST PIPES x 4 Short Mk-5 SEATS x 2 P&W WASP ENGINES x 4 (Alt)
PROPELLER HUB x 4 (2-part Hub) U/C MAIN LEG AXLE x 2 WHEEL CENTRES x 4 FUSELAGE UPPER PITOT
CONTROL COLUMN x 2 U/C LEG SUPPORT x 2 TURRET GUN SUPPORT x 3 WING AERIALS x 2
THROTTLE QUADRANT DF LOOP FUSELAGE TOP AERIALS x 4 FUSELAGE UPPER GUNS x 2
FUSELAGE 'T' AERIALS x 16 FUSELAGE 'YAGI' AERIAL REAR TURRET GUNS x 4 LANDING TROLLEY 'T' HANDLE
NOSE TURRET GUNS x 2 YAGI AERIAL 'V' SUPPORT FRONT TURRET GUNS x 2
TROLLEY WHEELS x 4 TROLLEY AXLE x 2

 DECAL SHEETS* Separate items as below

MARK- 3 and MARK- 5 AIRCRAFT

DECAL SHEETS AVAILABLE FOR:

£09.00 per sheet plus Shipping (No Shipping cost if ordered at the same time as the kit)

Royal Air Force

South East Asia Command

Royal Australian Air Force

Royal Canadian Air Force

Royal New Zealand Air Force

South American Air Force

Royal Norwegian Air Force

French Escadrilles

Special Markings to your requirements

 No's 88 Sqdn. 2x Aircraft - 201 Sqdn. 3x Aircraft - 205 Sqdn. - 209 Sqdn. - 228 Sqdn. 2x Aircraft - 230 Sqdn. - 270 Sqdn. - 4 OTU. - 235 OTU.

No's 230 Squadron. SEAC 5 x Aircraft 'M' - 'Q' - 'H' - 'P' - 'S'

No's 10 Squadron. 'A26 6' - 'RBY' - 'Z' No 461 Squadron. '2-E'

No's 422 Squadron. '2S' - 'DGZ' - '3C' - 443 Squadron. 'F-2'

NZ4101 Tainui Flying Boat Transport Flight. - No 6 MR Squadron. 'AXX' 'NZ4118' - No 5 Squadron. 'S' 'NZ4116'

No 35 Squadron. 'HR B' - 'MR B'

No 303 Squadron. RNorAF. 'WHA'  - 'WHC' - 'WHT'

Escadrille 12s.  'ML820' - Escadrille 7s. 'W6080' - No 343 Squadron. 'I' 'DV985'

I can draw and print most squadron badges and codes/serials as you wish, for a particular aircraft  please email your requirements:

E-Mail Contact

Contents subject to change without prior notice

A/. BUY MK-3 KIT - CLICK Here

B/. BUY MK-5 KIT - CLICK Here

There are no Decal shipping costs, IF BOUGHT WITH kit - otherwise click here

Mk-3 - Mk-5 Decal Sheet Examples - £12.00 per Sheet
