AVRO MANCHESTER Mark 1 and 1A

PRICED AT £53.00 plus Shipping

Decals for W/Cdr. Guy Gibson and F/O. L. Manser VC





Kit Contents

White vac formed plastic sheet in 1mm - 1.25mm - 1.5mm thickness. Crystal clear cockpit canopies, turrets, etc as required. High quality cast METAL fittings such as propellers, seats,  undercarriage legs, radiators, guns, aerials, etc as required. Computer drawn and printer controlled decals. Assembly drawings and instructions

PLASTIC PARTS LISTING: Note that there are some part supply differences between
aircraft Marks

FUSELAGE Port FIN Stbd Outer Late Mark U/C Wheels x 4 Halves
FUSELAGE Stbd FIN Stbd Inner Late Mark Nacelle Intakes x 2off
WING Port Top FIN Port Inner Triple Fin Mark

CLEAR PARTS
WING Port Bottom FIN Stbd Outer Triple Fin Mark
WING Stbd Top NAC' Outer Stbd Outer Half COCKPIT CANOPY
WING Port Top Bttm NAC' Outer Port Outer Half ASTRO DOME
TAILPLANE Port Top NAC' Inner Port Half CANOPY SIDE BLISTERS x 2
TAILPLANE Port Bottom NAC' Outer Port Half NOSE TURRET
TAILPLANE Stbd Top U/Carriage Nacelle Door x 4off TAIL TURRET
TAILPLANE Stbd Bottom Bomb Bay Door Port FRONT BOMB AIMERS WINDOW
FIN Port Outer Early Mark Bomb Bay Door Stbd MID UPPER TURRET
FIN Port Inner Early Mark Bomb Bay Floor WING TIP NAVIGATION ENDS
FIN Stbd Outer Early Mark Cockpit Floor (raised section) WING LANDING LIGHT SECTION
FIN Stbd Inner Early Mark Engine Intakes x 2off

DRAWINGS
FIN Port Outer Late Mark Prop Spinner Port 3x FULL SIZED A-3 DRAWINGS + ASSEMBLY INSTRUCTIONS
FIN Port Inner Late Mark Prop Spinner Stbd COCKPIT INSTRUMENT PANEL

METAL PARTS LISTING

Engine EXHAUST Intakes x 8off Tailwheel Wheel Pilot Seat U/Carriage Leg Supports x 2off
Wing Oil Cooler Intakes x 2off U/Carriage Legs x 2off Navigator Seat Propeller Blades x 6
Tailwheel Leg Aerial Mk-1 Twin Nacelle Radiators x 2off Control Columns x 2off
Guns Mid Upper x 2off Pairs Guns Tail x 2off Pairs Guns Nose x 2off

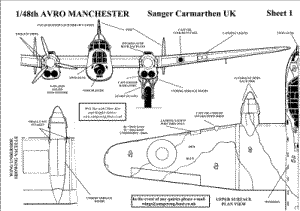

1/. SUPPLIED WITH 4 DRAWING /INSTRUCTION SHEETS.
2/. DECAL SHEET,
3/. PRINTED COCKPIT INSTRUMENT PANEL





DECALS

  MARK 1
Serial No Code Squadron
L7284 DEM 207 1940
L7453 TEA 49 1942
  MARK 1A
Serial No Code Squadron
L7319 EMS 207 1942
R5770 ZNG 106 1942
  (W/C Guy Gibson)
L7301 QXD 50 1942
  (Awarded VC)



L7301 Manchester VC awarded to F/O Manser

The citation in the London Gazette of 20th October, 1942 gives the following details :
Flying Officer Manser was captain and first pilot of an aircraft which took part in the mass raid on Cologne on the night of 30th May, 1942. Despite searchlights and intense and accurate anti-aircraft fire he held his course and bombed the target successfully from 7,000 feet. Thereafter, although he took evasive action, the aircraft was badly damaged, for a one engine and part of one wing Ire on fire, and in spite of all the efforts of pilot and crew, the machine because difficult to handle and lost height. Though he could still have parachuted to safety with his crew, he refused
d to do so and insisted on piloting the aircraft towards its base as long as he could hold it steady, to give his crew a better chance of safety when they jumped. While the crew Ire descending to safety, they saw the aircraft, still carrying the gallant captain, plunge to earth and burst into flames. In pressing HOME his attack in the face of strong opposition, in striving against heavy odds to bring back his aircraft and crew, and finally, when in extreme peril, thinking only of the safety of his comrades, Flying Officer Manser displayed determination and valour of the highest order.
